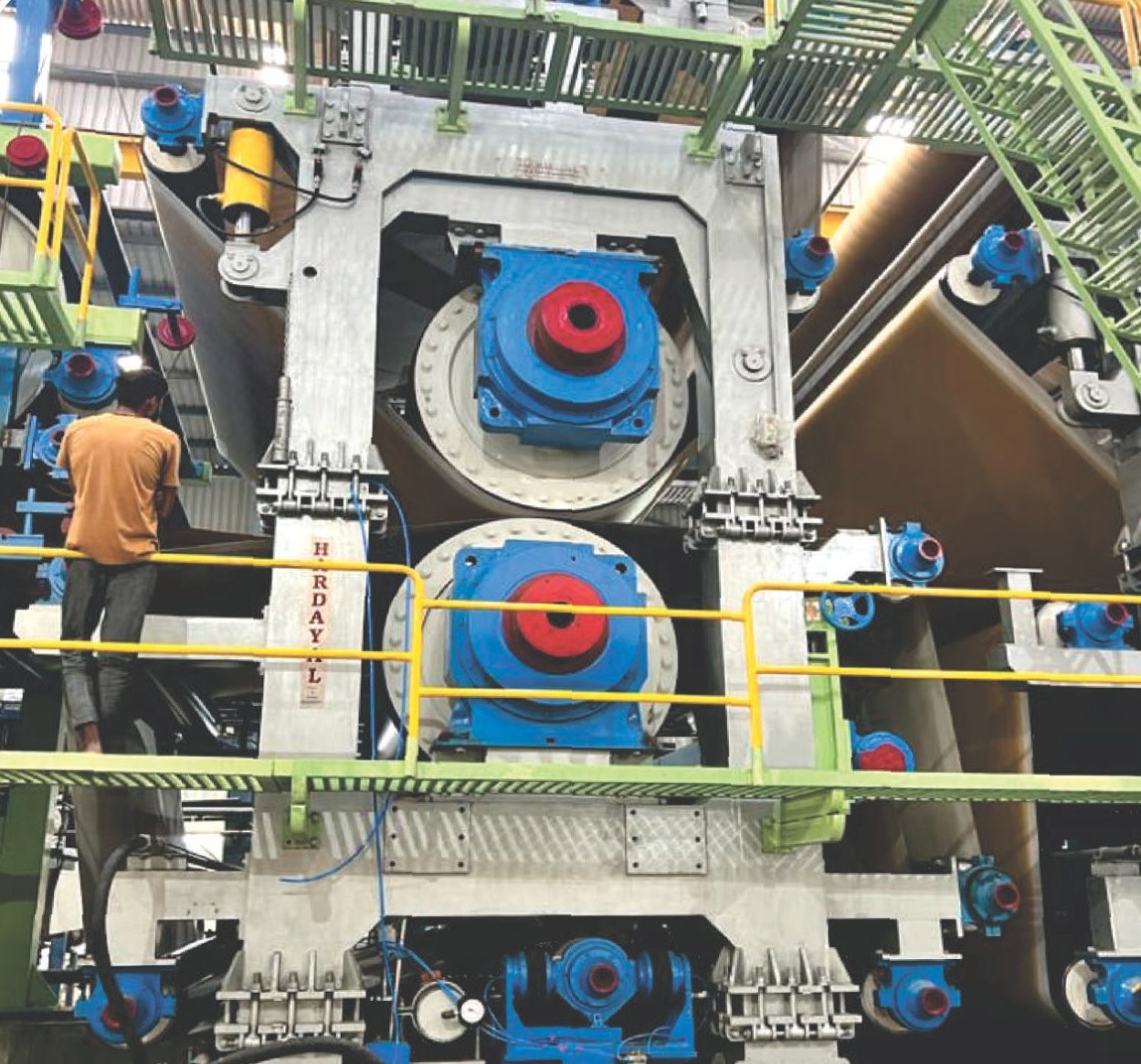

Jumbo Press Section

With Water Cooling

Advantages

Most suitable for Kraft, Test Liner, writing and printing and speciality paper because of efficient water removal.

Higher dryness achieved upto 50% in recycled furnish after this press comparison to conventional press upto 45%

Production increased by 18%

Improves the physical characteristics of paper

Les energy consumption , Save (power and fuel) per tonne of paper.

Press Roll Diameter	From 950 mm to 1500 mm
Loading Capacity (Linear)	From 180 to 450 kg/cm
Drive	Bottom roll / or Bottom & Top rollm
Double Felted Blind/ P.U, Drilled Rolls With Cooling Arrangement

Tri Nip Press Loading Designing

1st Nip	70-100 kg/cm
2nd Nip	100-150 kg/cm
3rd Nip	150-350 kg/cm
Felt tension	6.5 N/mm
Web transfer	Can be suction pickup
