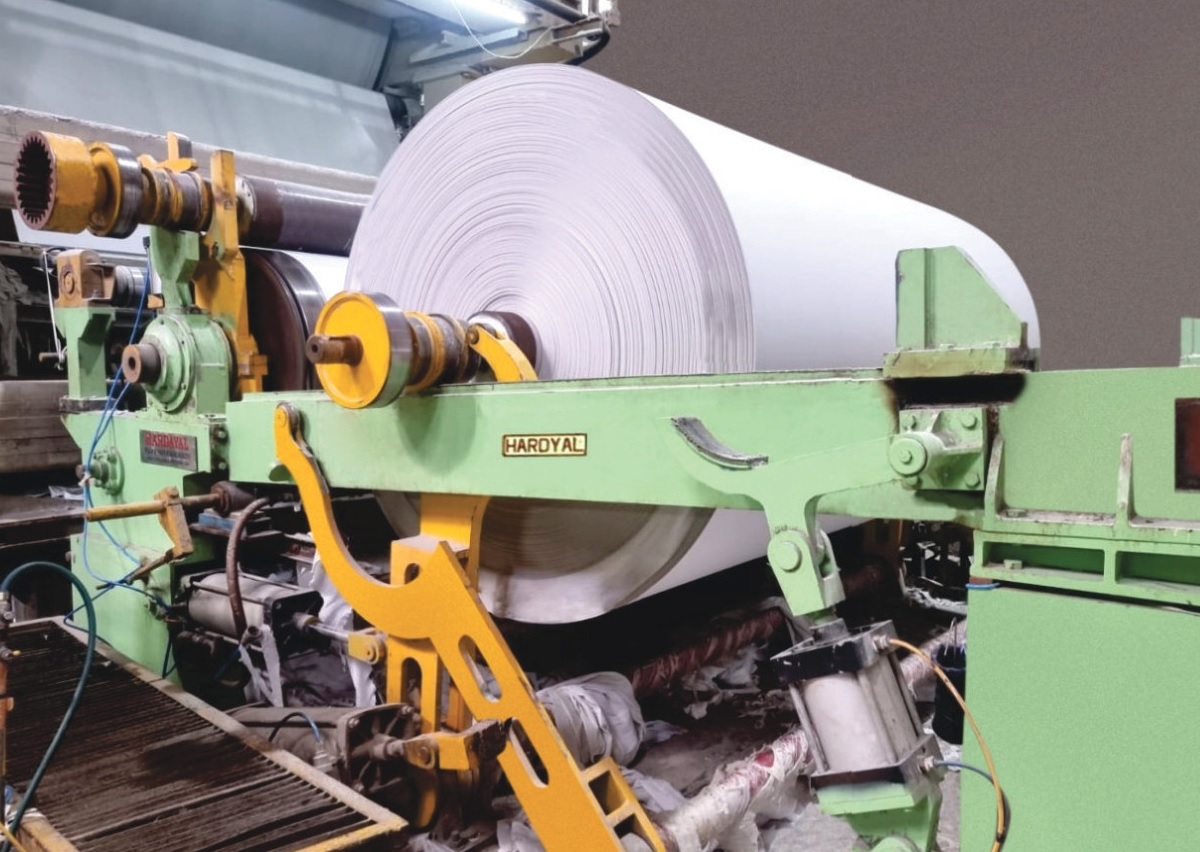

Pope Reel

Pope reel is designed on the principle of friction winding of paper

Primary grab arm is pneumatically/ hydraulically loaded and tilted hydraulically/ mechanically with manual operation

Pope drum is SS/MS fabricated and designed to withstand required nip pressure and provided with doctoring arrangement

Framing heavy duty in MS/SS/CIconstruction

Technical Data

D-max Paper Roll	Approx 2000 mm
Reel Drum Diameter	900mm - 1200 mm
Reel Spool Diameter	260mm - 400 mm
Paper Density (estimated)	750-900 kg/m
